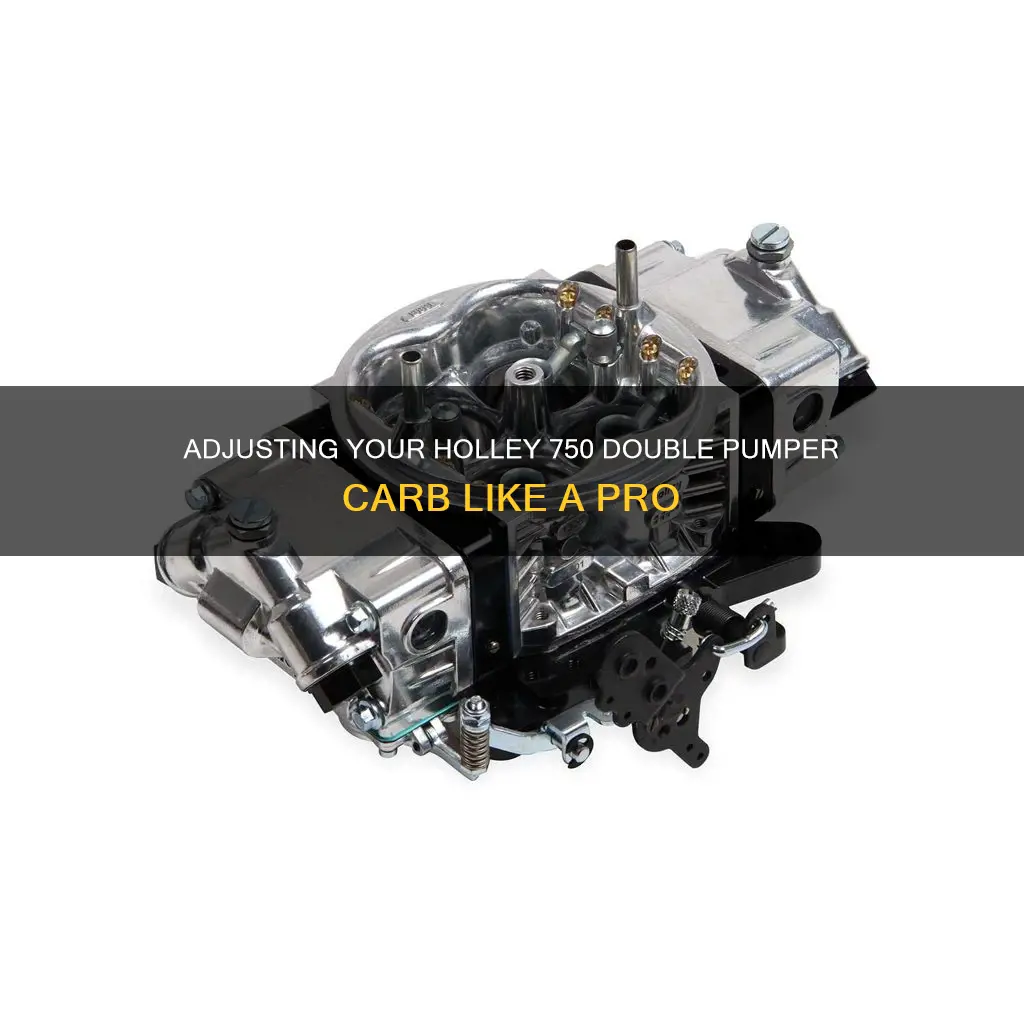

Adjusting Your Holley 750 Double Pumper Carb Like A Pro

The Holley 750 double pumper carburetor is a popular choice for those looking to upgrade their engine's performance and increase power and efficiency. When adjusting the Holley 750 double pumper carburetor, it is important to start with the idle mixture screws, which control the amount of air and fuel mixture that enters the engine at idle speed. These screws need to be set correctly to prevent the engine from stalling or running too rich at idle. Once the idle mixture screws have been adjusted, the next step is to locate the main metering jets and adjust the idle speed accordingly. It is also recommended to adjust the accelerator pump rod to ensure proper operation when accelerating from a stop. With the right adjustments, the Holley 750 double pumper carburetor can significantly enhance the performance of both street performance and race cars.

Adjusting the idle mixture screws

To adjust the idle mixture screws, start by turning both screws in until they are snug. Then, turn each screw out by 1 and a half turns. This will give you a good starting point for adjusting your idle mixture.

From here, you can fine-tune the mixture by slowly turning each screw in or out until you find the optimal setting. It's important to make small adjustments and then test drive your vehicle to see how it responds.

The idle mixture screws should be adjusted until the engine is idling smoothly. This will ensure that your engine does not stall or run too rich at idle.

Accelerator pump rod adjustment

To adjust the accelerator pump rod on a Holley 750 double pumper carburetor, it is crucial to understand the clearance between the accelerator pump cam linkage and the pump. Holley recommends setting the pump linkage with a specific clearance to ensure smooth operation. Specifically, Holley suggests maintaining 0.015 inches of clearance between the lever arm and the pump linkage at maximum lift (WOT). This specification ensures that the linkage does not bottom out and cause binding or damage.

When adjusting the accelerator pump rod, it is important to avoid excessive tightness. A common issue with Holley accelerator pumps is an off-idle stumble during acceleration. To address this, ensure that the accelerator pumps are set to initiate the squirter shot as soon as they are actuated by the throttle linkage. The adjustment screw should be slightly touching the arm, leaving approximately 0.010 to 0.020 inches of arm travel at full stroke. This setting helps to eliminate any bog or sputter during acceleration.

Additionally, it is worth noting that the Holley 750 double pumper carburetor may experience issues due to the standard accelerator pump diaphragm becoming brittle with age. Holley offers a green Viton rubber diaphragm designed for alcohol carbs, which also works well with the ethanol content in modern pump gas. Upgrading to this diaphragm can help improve the durability and performance of the carburetor.

It is important to remember that each performance engine is unique, and adjustments may vary slightly. Always refer to Holley's recommendations and seek expert advice when needed to ensure optimal carburetor tuning and performance.

Tuning the Holley power valve

Understanding the Holley Power Valve

The Holley power valve is a vacuum-operated device that controls the flow of fuel into the engine. It is designed to open at specific manifold vacuum levels, allowing additional fuel to enter the main metering circuit. The power valve is rated in inches of mercury (InHg), with the most common rating being 6.5 inHg. This means the valve will open when the manifold vacuum drops to 6.5 inHg or lower.

Determining the Opening Point

The first step in tuning the Holley power valve is to determine the desired opening point. This decision depends on various factors, including engine specifications and intended usage. For a street car with an automatic transmission, you can start by measuring the idle vacuum of a fully warmed engine at idle in gear. Let's assume this measurement is 13 inHg. By dividing this value by two, you get 6.5 inHg, which is a suitable starting point for tuning.

Adjusting the Power Valve

Based on the chosen opening point, you can now adjust the power valve accordingly. If you want the power valve to open earlier to prevent the engine from running lean, you can set the power valve closer to 8.5 or 9.0 inHg. Conversely, if you want to delay the onset of additional fuel, you can choose a lower manifold rating, such as 4.5 inHg, which is suitable for certain street car configurations.

Troubleshooting and Maintenance

It is important to regularly inspect and maintain the Holley power valve for optimal performance. If you suspect a blown-out power valve, you can perform a simple test by checking the manufacture date of your Holley carburetor. Older models, manufactured before 1992, may not have a built-in power valve blow-out check valve. In such cases, you can test the valve using the idle mixture screws and observing the engine's response. Additionally, keep an eye out for common issues like a leaking power valve or a damaged gasket, which can impact the overall performance and fuel efficiency of your engine.

Customisation Options

Holley offers a range of power valves with different orifice sizes, allowing for customisation to meet the specific needs of your engine. The higher the orifice size, the more fuel is added to the system. By balancing these orifices, you can create a custom-tuned carburetor that maximises the engine's efficiency.

Remember, tuning the Holley power valve requires a combination of understanding your engine's requirements and making adjustments accordingly. It may involve some trial and error to find the sweet spot that enhances your vehicle's performance.

Converting the main body

If you're looking to upgrade your engine's performance, converting the main body of your Holley 750 double pumper carburetor can be a great option. Here's a detailed guide on how to do it:

Step 1: Purchase the 750-cfm Holley HP Main Body

To upgrade your 600 or 650 double-pumper to a 750, you'll need to purchase the 750-cfm Holley HP main body. This is a cost-effective option, as you can make the upgrade for less than $150.

Step 2: Remove the Old Carburetor

Before installing the new main body, you'll need to remove the old carburetor and disconnect all the fuel lines. Be sure to clean up any spilled gasoline.

Step 3: Install the New Main Body

Install the new 750-cfm Holley HP main body in place of the old carburetor. Reconnect all the fuel lines and use new gaskets or sealant as needed.

Step 4: Adjust the Idle Mixture Screws

The idle mixture screws control the amount of air and fuel mixture that enters the engine at idle speed. To adjust them, first, turn both screws in until they are snug, then turn each screw out by 1.5 turns. This will give you a good starting point for fine-tuning. Make small adjustments and test drive your vehicle to see how it responds.

Step 5: Fine-tuning

Once the main body is installed, you may need to make some fine-tuning adjustments. This may include changing the jets and air bleeds to get the desired air/fuel ratio.

Step 6: Test and Verify Performance

After making any necessary adjustments, test the engine to ensure it has all the fuel it needs and to verify that the conversion has been successful.

Replacing the carburetor

The Holley 750 double pumper carburetor is a popular choice for car enthusiasts, but it's important to ensure that it is the right fit for your engine. If you are replacing an old carburetor, it is important to note that a bigger carburetor will not always perform better. In fact, a carburetor that is too big may cause problems.

When replacing the carburetor, it is important to consider the specifications of your engine. The Holley 750 double pumper carburetor is a high-performance option, with four barrels, two accelerator pumps, and a mechanical linkage connecting the primary and secondary sides. It is important to ensure that your engine can handle the flow of air and fuel that this carburetor provides.

To replace the carburetor, you will need to remove the old carburetor and install the new Holley 750 double pumper carburetor. This process will vary depending on your vehicle and the specific carburetor you are installing, but there are some general steps that can be followed.

Firstly, you will need to disconnect the fuel line and any other necessary components connected to the old carburetor. Make sure to plug or cap the fuel line to prevent leakage. Then, remove the old carburetor by unscrewing or unbolting it from the intake manifold. Clean the mounting surface and gasket area to ensure a good seal for the new carburetor.

Next, you will need to install the new Holley 750 double pumper carburetor. Place the new carburetor onto the intake manifold, ensuring that the gaskets are properly aligned and sealed. Secure the carburetor with the appropriate screws or bolts, being careful not to overtighten them. Reconnect the fuel line and any other necessary components, ensuring that all connections are secure and sealed.

Finally, you will need to adjust the new carburetor to ensure optimal performance. This may involve tuning the carburetor by adjusting the jets, power valve, and other components. It is recommended to refer to a professional or a detailed guide specific to your vehicle and carburetor for accurate adjustment procedures.

By following these steps and ensuring that the Holley 750 double pumper carburetor is suitable for your engine, you can successfully replace and enjoy the benefits of this high-performance carburetor.
